Laboratory CBR Testing in Nanaimo: What the Soil Data Actually Means for Your Project

You can drive ten minutes in Nanaimo and go from the dense, gravelly till around the hospital area to the wet clays near Departure Bay. That shift in subgrade changes the CBR value by 20 points or more, and suddenly your pavement design needs a rethink. We've seen projects where a single assumed CBR of 3% was applied across an entire subdivision off Hammond Bay Road, and it led to unnecessary over-excavation in the upper benches. The laboratory CBR test, run on a remolded sample compacted to a target density from your site, tells you what's real. For the finer silts near the Nanaimo River floodplain we often pair it with a grain size analysis to confirm the fines content, and when the pavement structure gets thick we discuss whether a rigid pavement design might reduce long-term maintenance in heavy truck zones.

A soaked CBR of 3% means you're building on a sponge; jumping to 6% through lime treatment cuts your structural number by 20%.

Technical details of the service in Nanaimo

The surficial geology across Nanaimo is dominated by Vashon Drift—till, glaciomarine silts, and outwash sands—and it behaves completely differently depending on how much water it's holding. In a wet winter month a silt from the Chase River area can drop from a CBR of 8% to under 3% after a 96-hour soak. That's why ASTM D1883 requires a four-day soaked condition for the laboratory CBR test: it simulates the worst-case scenario under a saturated pavement section. We compact three-point curves at the optimum moisture from the site's proctor, then submerge the molds and measure penetration resistance with a calibrated proving ring. The load-penetration curve at 0.1" and 0.2" gives the bearing ratio, and if the correction for concavity applies we apply it strictly per the standard. In our experience the soaked value controls the design in nearly every Nanaimo low-point lot. For deeper fill placements where compaction is the primary variable, the field sand cone density test gives us the in-place numbers that the lab CBR alone cannot provide.

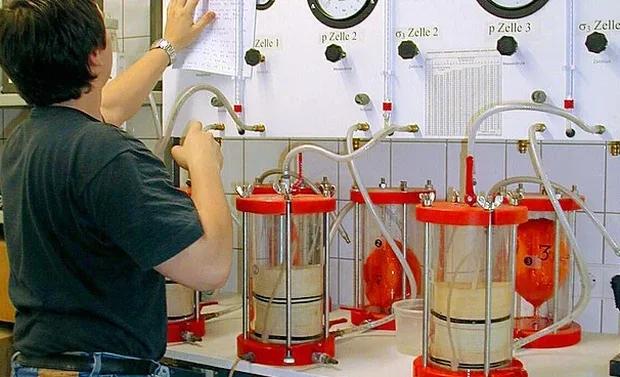

Laboratory CBR Testing in Nanaimo: What the Soil Data Actually Means for Your Project

Parameter	Typical value
Standard	ASTM D1883-21
Sample preparation	Remolded at Proctor maximum dry density (ASTM D698 or D1557)
Soaking period	96 hours submerged, with surcharge weights simulating pavement mass
Penetration rate	0.05 in/min (1.27 mm/min)
Penetration readings	0.1 in (2.5 mm) and 0.2 in (5.0 mm), corrected if concavity is present
Surcharge mass	Minimum 4.5 kg (10 lb) annular weight, higher for thick pavements
Swelling measurement	Recorded daily during soak; percent swell reported alongside CBR

Risks and considerations in Nanaimo

One thing we run into repeatedly in Nanaimo is a contractor who pours money into a granular sub-base thinking it will fix a failed pavement, when the real problem is a CBR of 2% in a silt pocket that nobody tested. The water sits in that lens, the fines pump up into the crushed rock, and within two winters the asphalt is alligator-cracked. On a commercial lot up by Northfield Road we once saw a design built on an assumed CBR of 10% that turned out to be under 4% after a wet season—the owner ended up with a $45,000 patch job two years in. The laboratory CBR test, run early in the geotechnical campaign, would have flagged that risk immediately. If the soaked value comes back below the design threshold, you still have options: chemical stabilization with lime or cement, geogrid reinforcement at the subgrade-subbase interface, or a thicker structural section. But without the soaked CBR number, you're just guessing against a Vancouver Island winter.

Need a geotechnical assessment?

Reply within 24h.

Email: info@geotechnicalengineering.vip

Applicable standards: ASTM D1883-21 Standard Test Method for California Bearing Ratio (CBR) of Laboratory-Compacted Soils, ASTM D698-12 Standard Test Methods for Laboratory Compaction Characteristics of Soil Using Standard Effort (12,400 ft-lbf/ft³), ASTM D1557-12 Standard Test Methods for Laboratory Compaction Characteristics of Soil Using Modified Effort (56,000 ft-lbf/ft³), BC Supplement to TAC Geometric Design Guide (MoTI Section 200)

Our services

The laboratory CBR test doesn't exist in isolation—it's part of a sequence that starts with understanding the soil profile and ends with a pavement structure that lasts. Here's how we build that sequence for Nanaimo projects.

Remolded CBR with Moisture-Density Proctor

Three-point compaction curve followed by CBR penetration at the optimum moisture content. We run both standard and modified Proctor efforts depending on the project specification, and report soaked CBR at 96 hours with swell data.

CBR Correlation for Coarse Glacial Tills

Nanaimo's tills often contain particles up to 3 inches that exceed the CBR mold limit. We apply the scalp-and-replace procedure per ASTM D1883, correcting for oversize fraction, so the reported CBR reflects in-situ matrix behavior rather than a sieved artifact.

Pavement Design Input Package

We deliver a design-ready summary: soaked CBR, resilient modulus estimate (MR = 1500 × CBR for fine-grained soils), frost-susceptibility classification, and a recommended structural number range for the traffic loading. This plugs directly into the AASHTO 1993 design equation or the TAC pavement design method.

Quick answers

What does a laboratory CBR test cost in Nanaimo?

For a single-point CBR test with the companion Proctor compaction curve, budget between CA$180 and CA$280 per sample. The range depends on whether you need standard or modified Proctor effort, and how many points on the compaction curve you require. A typical pavement investigation with four CBR tests across a site runs around CA$900 to CA$1,200, including the lab report with soaked and unsoaked values and swell measurements.

Why do we need the 4-day soak for CBR when the site drains well?

Even a well-drained gravel in summer can see a perched water table in a Nanaimo winter. The 96-hour soak in ASTM D1883 isn't about the current site drainage—it simulates the worst-case saturated condition over the pavement's life. A silt that reads CBR 12% at placement moisture can fall to 2% after a prolonged wet period, and that's the number that controls subgrade rutting. Skipping the soak gives you a false sense of security that disappears with the first November rain.

Can I correlate CBR from a DCP test instead of running the lab?

You can estimate CBR from a Dynamic Cone Penetrometer using the TRL correlation (log CBR = 2.48 - 1.057 × log DCPI), but in Nanaimo's mixed glacial soils we've seen that correlation drift by 30% or more in silts with high mica content. The DCP gives you a continuous profile quickly, which is useful, but for the final pavement design—especially for municipal acceptance—the laboratory CBR on a properly compacted sample is the reference method. We recommend using DCP for screening and lab CBR for confirmation at critical sections.
